radar level transmitter
radar transmitter
radar level transmitter

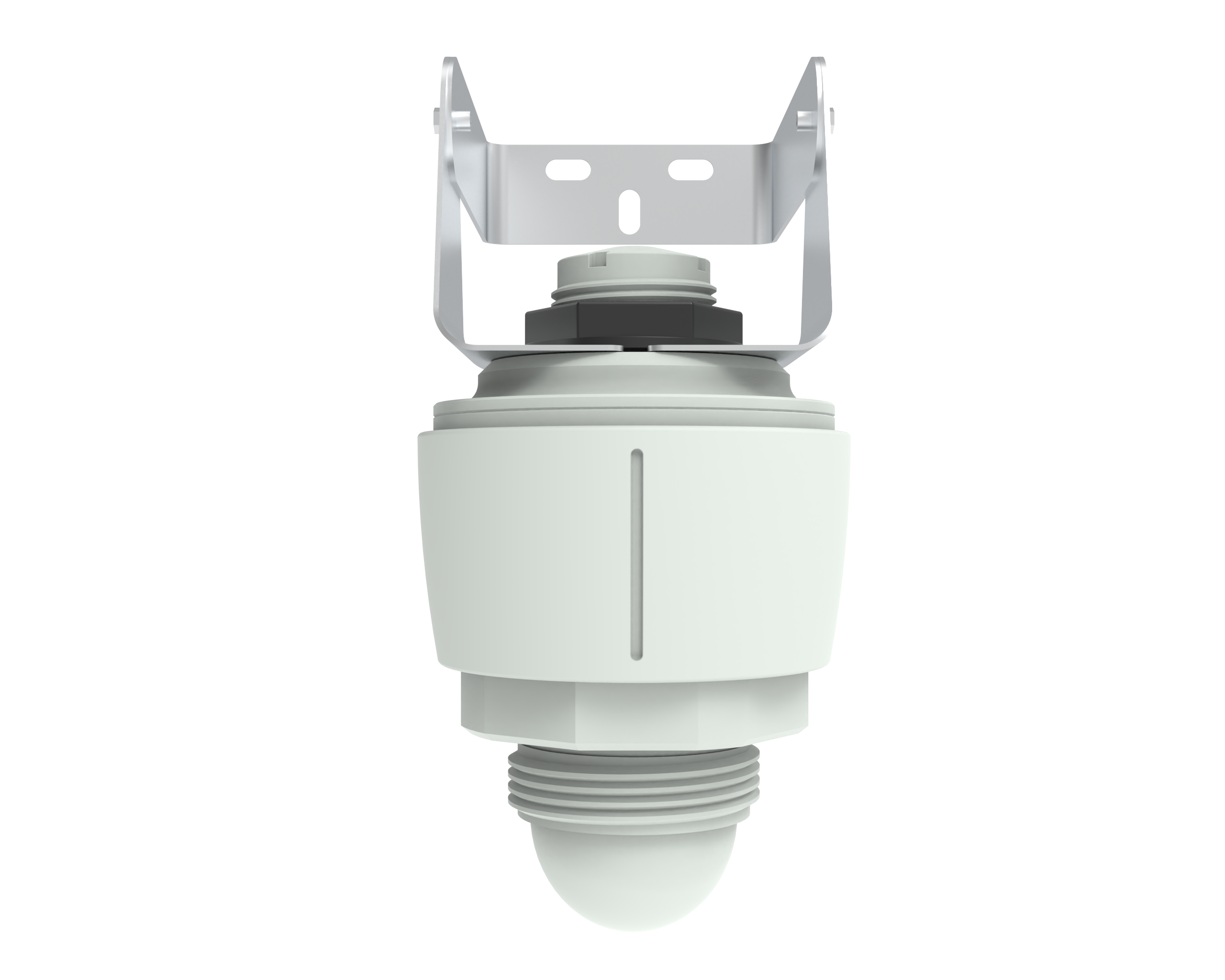

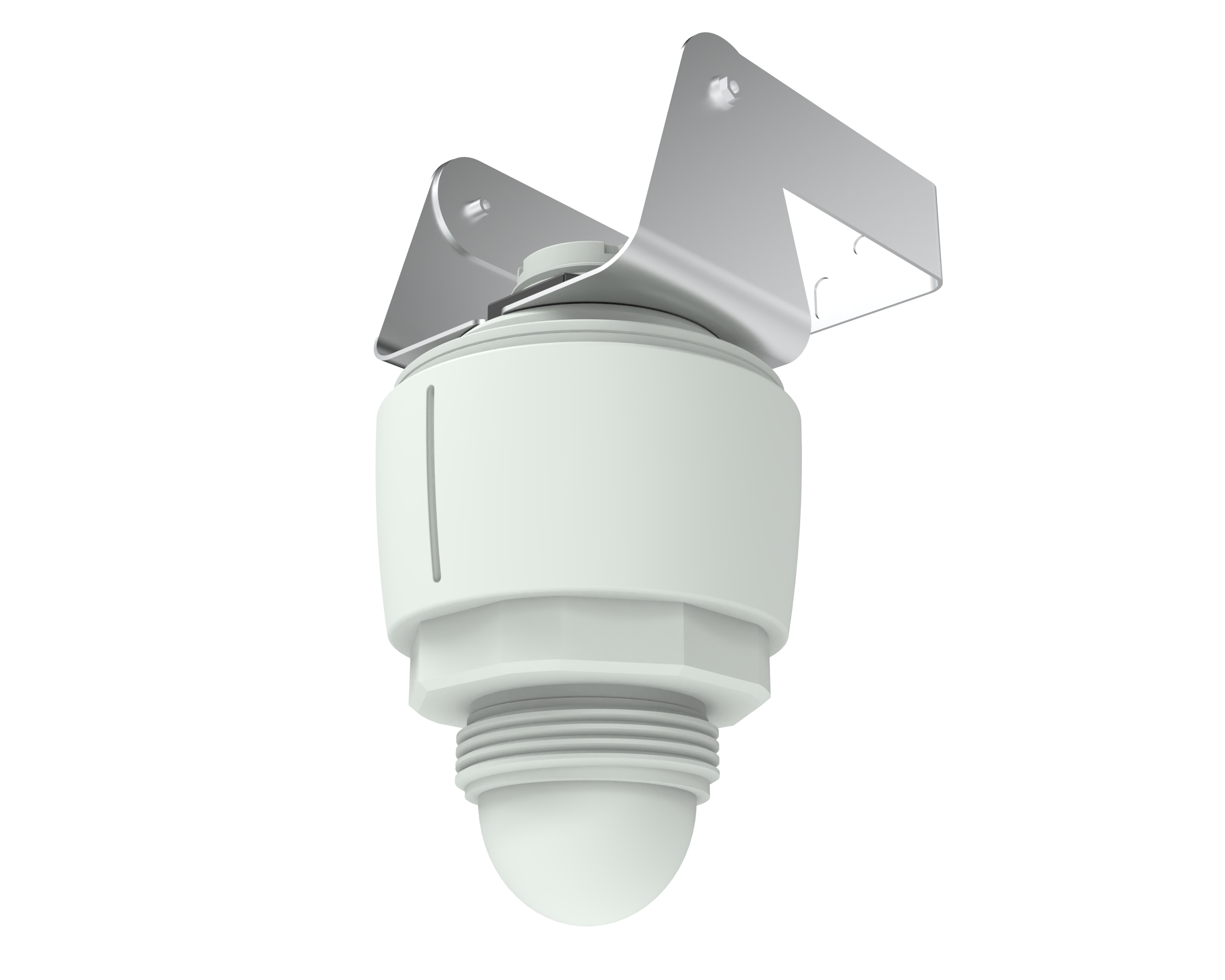

80G Radar Level Transmitter for liquid water level measurement

Original price was: ₹13,499.00.Current price is: ₹10,999.00.

jilina@skgauge.com  Whatsapp: 86 15809274235

The SK-E21 is the ideal sensor for non-contact level measurement in simple

applications. Weight only 400g. It is particularly suitable for open channel

application: water/wastewater field, rain basins, flume, dam level monitoring.

Meanwhile the sensors could be applied on some liquid tanks or containers.

* High frequency: 80GHz, more focus

* Accuracy: ±2 mm(liquid)

* Measuring range: up to 50m

* Small emitting angle: ±3.5°

* Thread connection:G1.5, customized flange

SKU: 500 Category:
Model SK-E21
Product Type FMCW Radar Level Transmitter


Application

 *Open channel water measurement

*Standard liquid measurement
Frequency 77Ghz-81Ghz
Measurement Range Liquid: 10M 20M 30M 50M
Accuracy ±2mm
Beam Angle ±3.5°
Material PP (polypropylene)
Process Connection G1.5 Thread and flange (customized)
Process Temperature -20°C to 60°C
Process Pressure Normal atmospheric pressure
Signal output 4-20mA / RS485/ Bluetooth
Power Two-wire DC 24V (22V~30V)
Protection IP67
Weight 83mm*128mm, weight 400g
