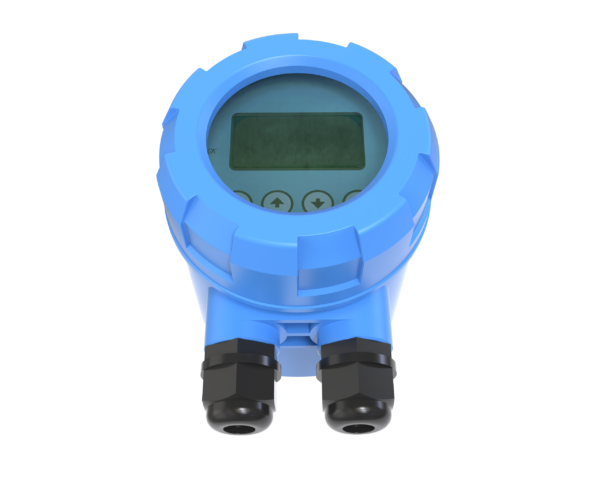

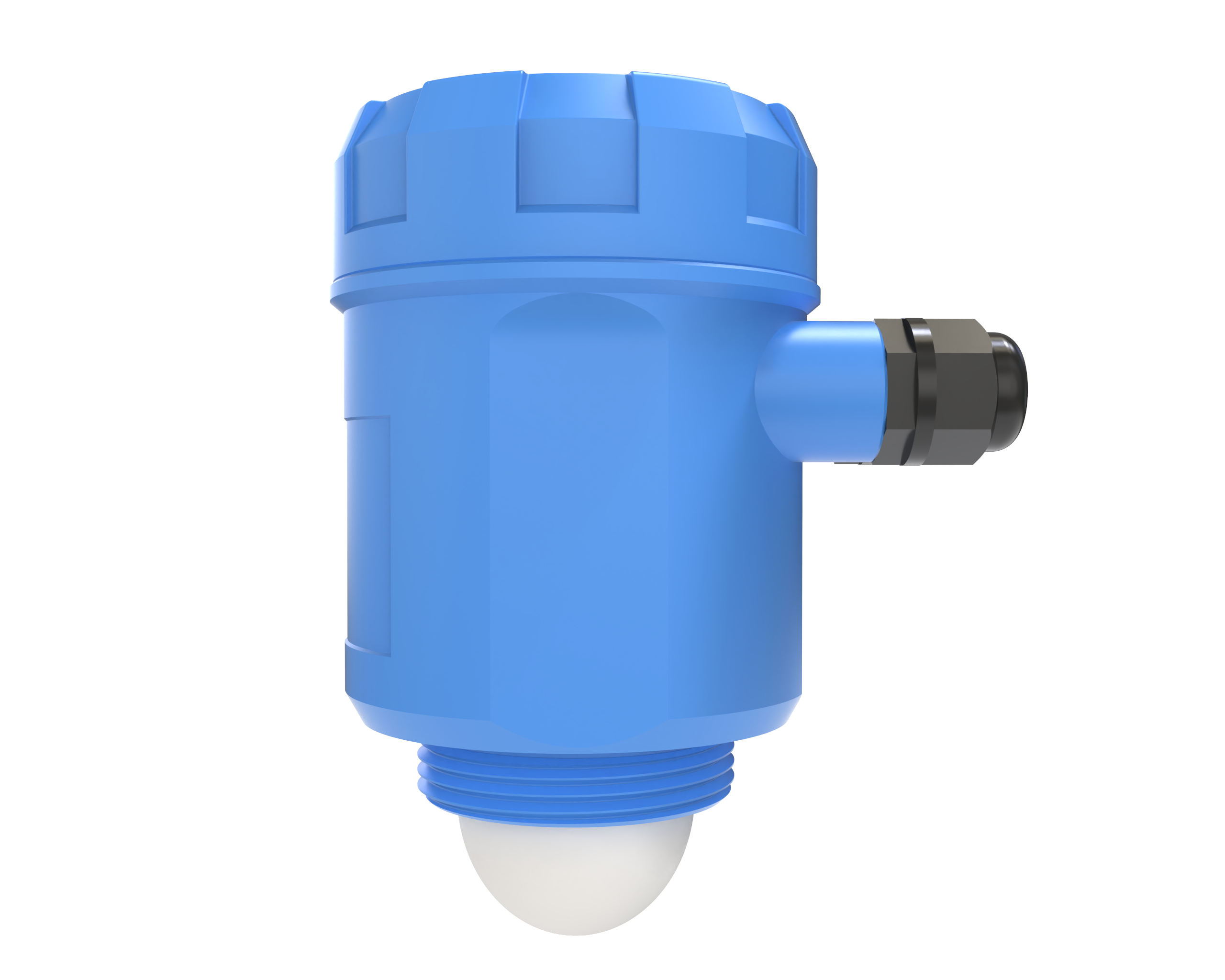

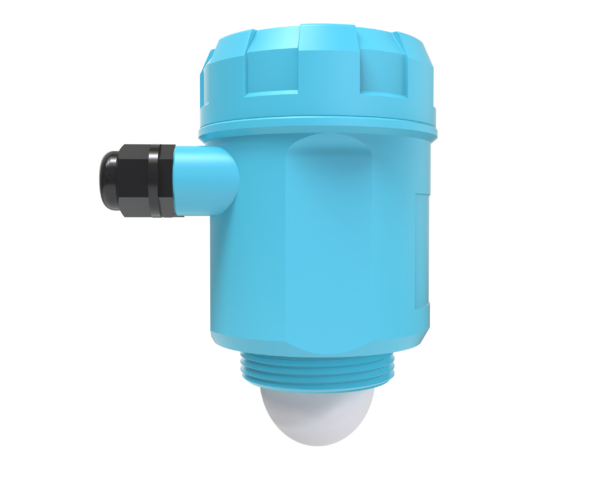

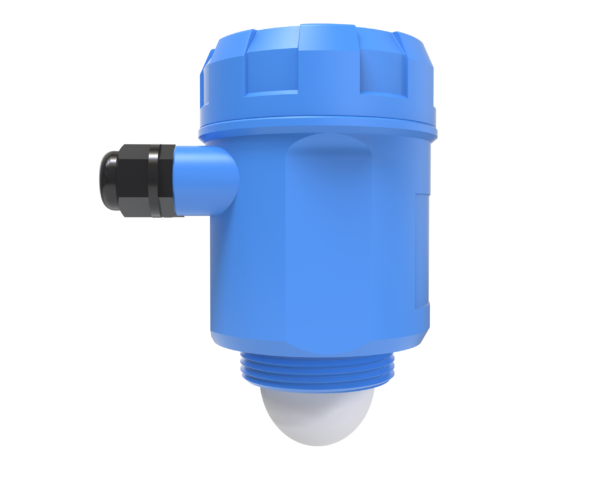

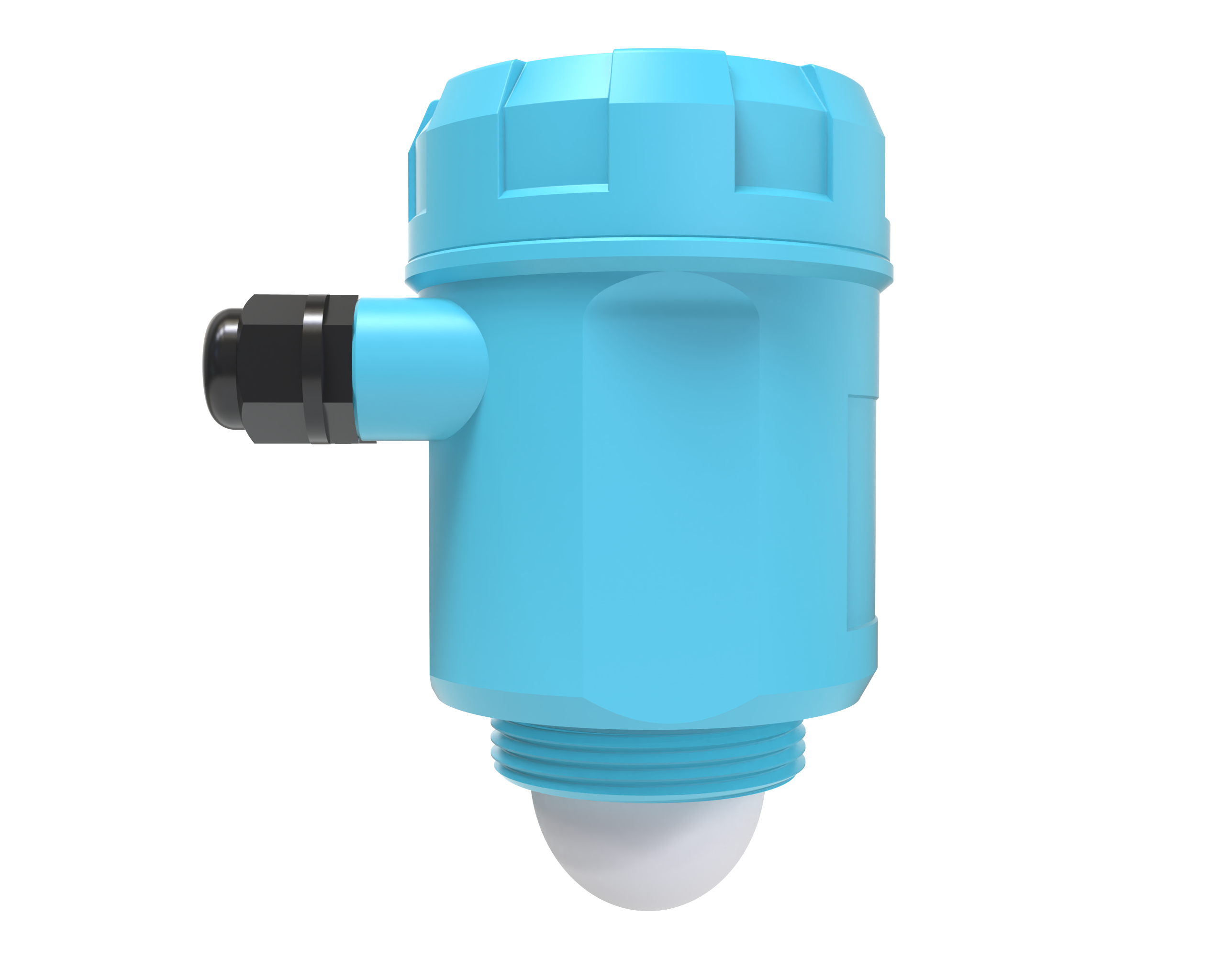

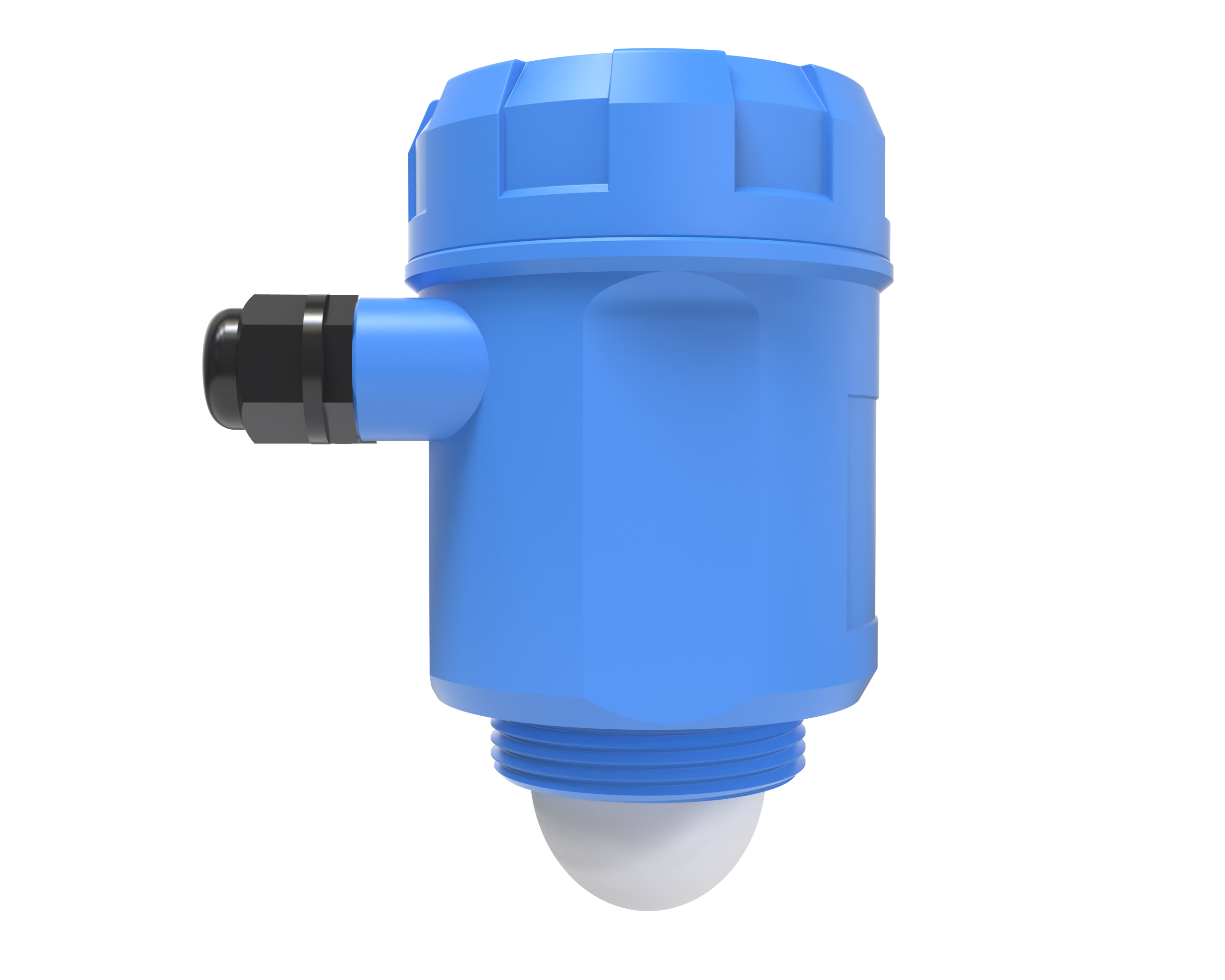

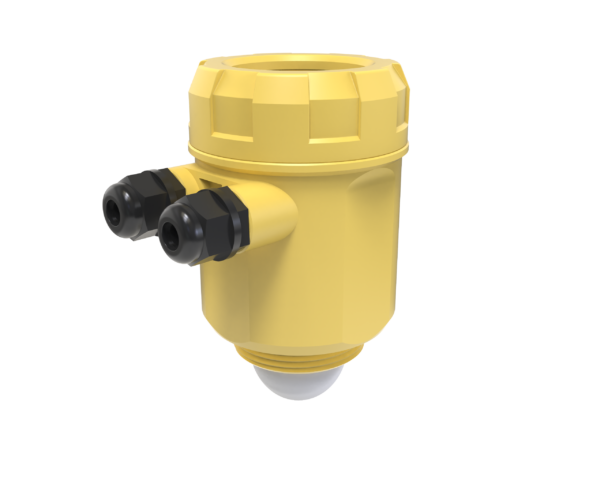

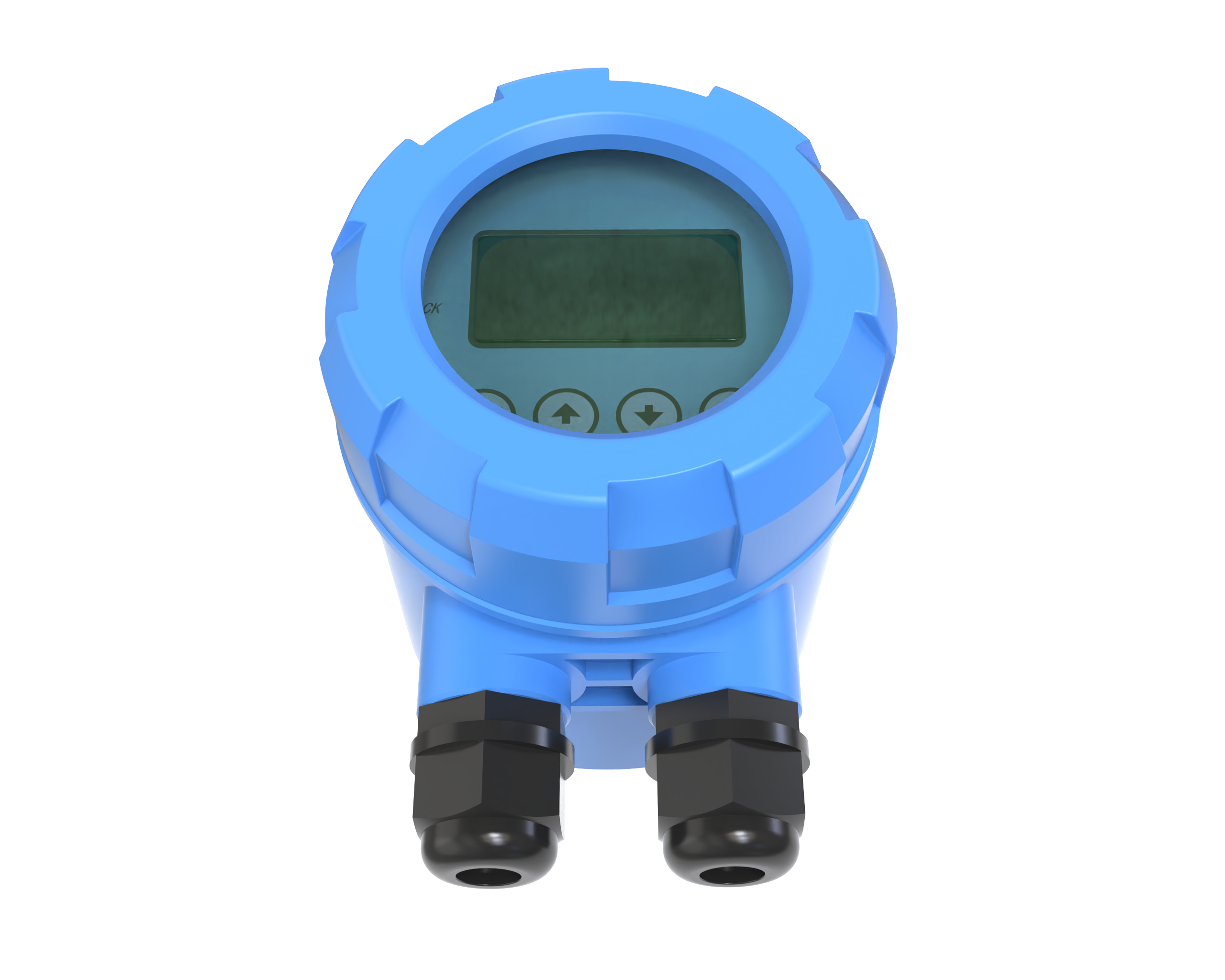

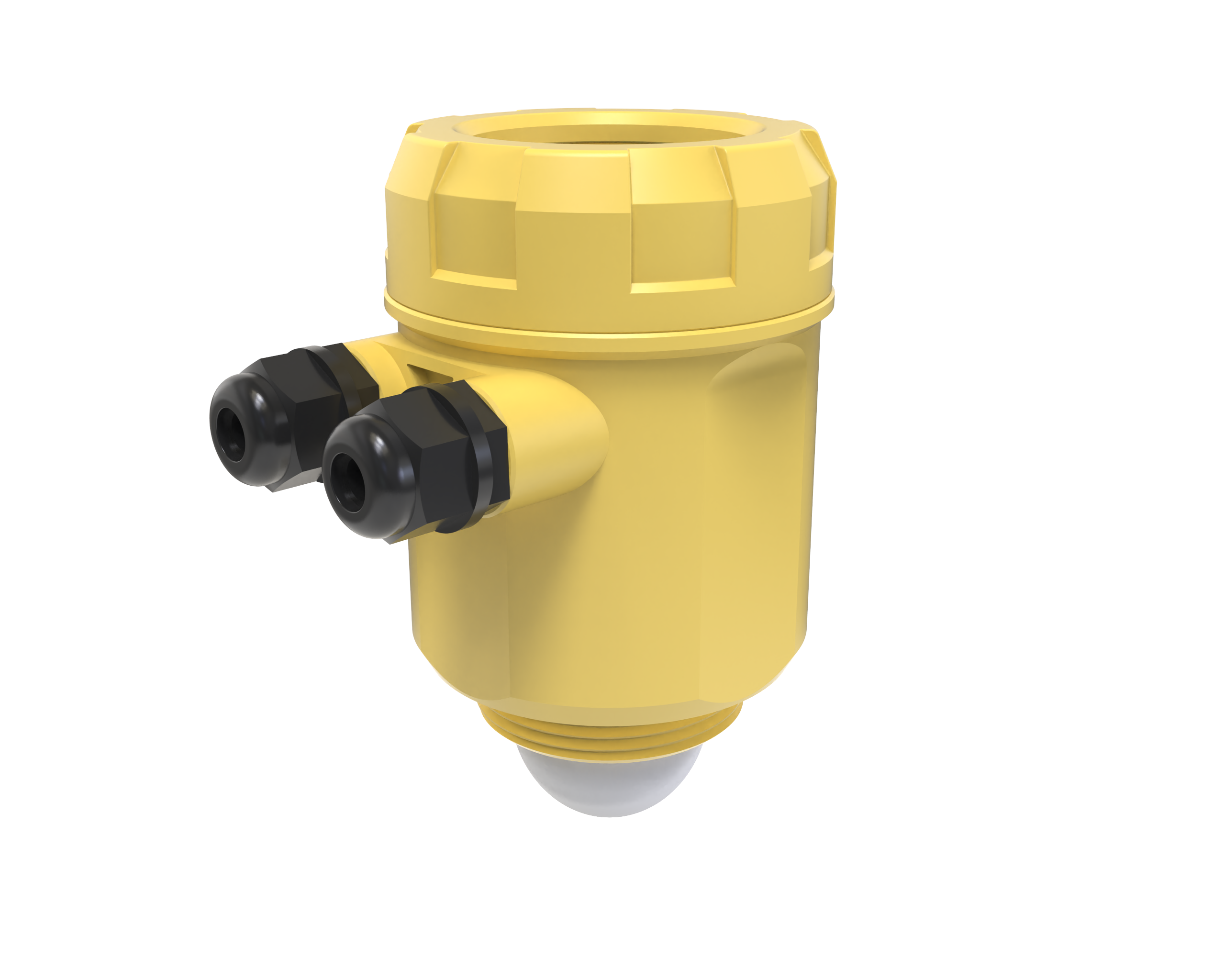

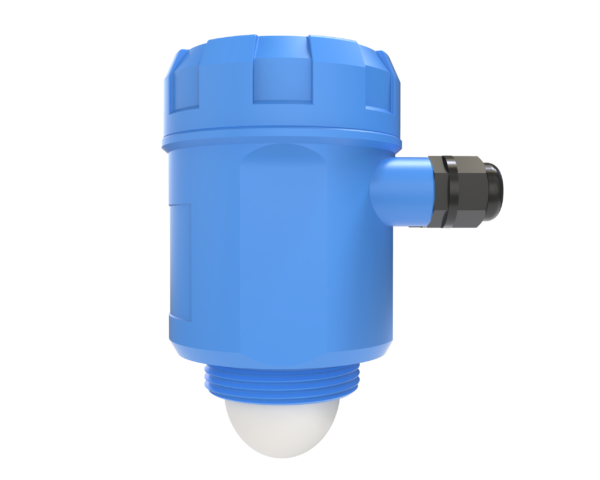

80G Radar Level Sensor with Bluetooth for tank water level measurement
80G Radar Level Sensor with Bluetooth for tank water level measurement - Image 2
80G Radar Level Sensor with Bluetooth for tank water level measurement - Image 3
80G Radar Level Sensor with Bluetooth for tank water level measurement - Image 4
80G Radar Level Sensor with Bluetooth for tank water level measurement - Image 5

80G Radar Level Sensor with Bluetooth for tank water level measurement

Original price was: ₹13,500.00.Current price is: ₹12,500.00.

SK-E11  80GHz Radar Level Transmitter

The SK-E11 is the ideal sensor for non-contact level measurement in simple applications. It is particularly suitable for open channel application: exp water/wastewater field, rain basins, flume, dam level monitoring. Meanwhile the sensors could be applied on some liquid tanks or containers.



* High frequency 80GHz, More Focus.

* Accuracy ±2 mm(liquid)

* Measuring range up to 30m

* Small emitting angle±3.5°.

* thread connection, customized flange.

With display.

SKU: 521 Category:
Model SK-E11
Product Type FMCW Radar Level Transmitter
Application





*Open channel water measurement

*Standard liquid measurement
Frequency 77GHz-81GHz
Measurement Range Liquid: 10M 20M 30M 50M
Accuracy ±2mm for liquid
Beam Angle ±3.5°
Material ABS+PP
Process Connection Thread and flange (customized)
Process Temperature -20°C to 70°C
Process Pressure Normal atmospheric pressure
Signal output 4-20mA / RS485/ Bluetooth/Hart
Power Two-wire DC 24V (22V~30V)/Four-wire DC (8V-36V)
Protection IP67
Display LCD 128X64
Size 85.5mm*130mm, weight 250g
